Effective code review

Now and then, code quality becomes an issue in a team and everyone starts to talk about how we can improve unit test and code coverage, but not for long. Eventually, it’s not a hot topic anymore as people get busy. But then, you will experience déjà vu probably within a year, because the same idea comes back the next year. My name is Bryan Liu, a quality engineer working on test automation of LINE NOW, and I’d like to share what I did to facilitate unit test and code review process in LINE Taiwan.

Unit test and code review

Peer code review is part of LINE’s engineer culture, as our CTO explained to us during OJT. Facebook states the most three important things in development as code review, code review and code review. Yes, the only way to address unit test and improve code quality is to make unit test part of our engineer culture, and code review is here to help.

Boy scout rule for coding, from {codemotion}

Follow this boy scout rule which recommends reviewers to check if unit tests supplement new code and bug fixes during a review, and by continuously doing this, code coverage should expand or at least remain the same. For example, if code coverage drops, a reviewee should explain to the team the difficulties he/she is having and the reasons for not adding more tests. If all agree upon the explanation and has no issues, he/she can proceed. Otherwise, the reviewee shall fix it!

Tips for effective code review

The most efficient way to do code review is through pair programming, but using PRs (Pull Request) on Github is okay, if this suits your team better. To get code review done, I mean really done, we should first try to increase the efficiency of code review processes; the idea is to treat reviewer as a rare resource, because none of our major responsibility is code reviewing, right?!

And here are some tips for effective and efficient code review:

Keep changes small

A study by a Cisco System programming team has shown that 60 to 90 minute long review over 200 to 400 LoC (Line of Code) yields 70–90% defect discovery. Treat each PR as a releasable unit (feature, bug fix) or a cohesive idea which is meaningful to the PR. To learn why a large pull request hurts and what the optimal size for pull requests is, check here.

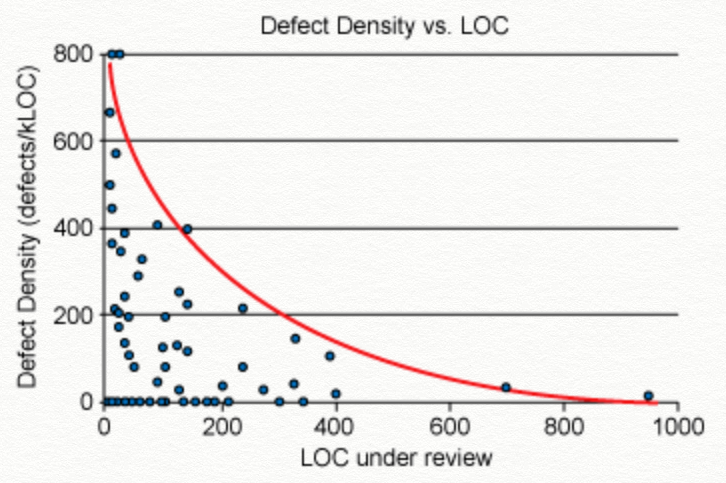

Code reviews, from @iamdeveloper on Twitter & Defect density vs LoC, from Cisco study case

Review often and shorten sessions

Code reviews in reasonable quantity, at a slower pace, for a limited amount of time result in the most effective code review. Beyond 400 LoC, the ability to find defects diminishes. Inspection rates under 300 LoC/hr is the best.

Defect density vs inspection rate, from Cisco study case

Send pull request to review as early as possible

To get a valuable code review, start a discussion before implementing details and try not to send big chunks of diffs. Separate different ideas into different PRs and assign different reviewers if needed, by dividing large problems into smaller problems and solving the small problems one at a time.

How workaround gets applied, if architectural/design problems found in the last minute PR during code review, from @isoiphone on Twitter

Provide enough context for creating meaningful pull request

Reviewer resource is very limited, treat it wisely!

To help a reviewer get into the context quickly, providing sufficient information is important, such as why and how the change is being made, as well as any risks or concerns observed. Such information is a good catalyst for generating good discussions later. As an added benefit, the author will often find additional errors before the review even begins. Though not every PR is worthy writing such detail, but you can briefly annotate what’s been done and tested or which part should a reviewer pay more attention to!

Github issue and pull request templates might do some help. Also, attaching a screenshot to describe what you are up to is a good idea! Here are a couple of examples on using PR templates to provide meaningful context for code review and further QA verification.

Examples of Github PR template

Linting and Code Style Check

Leave static code analysis and coding style check to machines with tools like SonarQube and ESLint, and spare human eyes for important parts like business logics and algorithms. These code scanning tools, type checking tools and linting tools can report bugs, code smells and vulnerabilities, along with a good test suite can certainly increase the confidence level.

Detected issues in SonarQube from SonarQube website

One of the most important part of code reviews is to reward developers for growth and effort, so try to offer as many compliment as possible.

Lastly, you can’t give a proper review if you can’t understand parts of the code. If your discussion seems to go back and forth, picking it up and finalizing the discussion in person would be more efficient.

Make this part of our engineer culture

Someone said that “culture is what people do while no one is looking”. Will you still write adequate tests for your code when code review process is skipped? Not easy right? But it’s still worth trying! If your project has employed Agile, consider the following factors to make your team culture self-directed, continuously improving and learning:

  • Autonomy: Team members take their responsibilities and work in the ways they prefer (Example: Scrum, pair programming)
  • Mastery: Continuously performing good coding practices and learning from each other through code review can eventually enhance personal coding skills
  • Purpose: Code quality is our ultimate goal, find bugs at an early stage instead of putting fire off in production

Thus to facilitate team culture building, I started my efforts with following two items:

Enhance Skill

Yes, to get to the bottom of making this work, developers still need to have a sound concept and complete knowledge to reach the growing consensus(practices) of their team in their daily work. To help developers, we leverage local consultancy to give workshops on unit test, refactoring and TDD (Test-Driven Development).

We address the following topics in the workshop (listed but not limited):

  1. Unit test
    • Design test cases to reveal intention rather than to test code implementation
    • Identify and isolate dependency
    • Introduce extract & overwrite and dependency injection methods
    • Explain stub & mock framework and assertion libraries
    • Practice refactoring skills like extract method, inline variables, and many others.
  2. Kata (programming) hands on

    • Requirement analysis, refine scenarios and find key examples
    • Code design and implementation
  3. TDD and refactoring

    • Demo refactoring, identifying code smells and associated methods to remove them
    • Live coding with the TDD approach (Example: baby steps, red light green light)
    • Hands on practice

Snapshots during workshop

Measure the progress

If you can’t see it, you can’t measure it, you can’t improve it!

By leveraging visual impact with public dashboards, message notification to continuously remind everyone in pursuit our goals, we have the following dashboards displayed in rotation on a big screen by the entrance gate.

SonarQube project dashboard

All stats of static code analysis come from SonarQube, code repos directly link to production services should publish reports here.

Team based code coverage

Team based code coverage chart shows the coverage trend of each repository of a team, so you don’t have to navigate into each SonarQube project page. By putting this type of charts side by side, it’s easy to compare how different teams are doing.

PR size and resolution time

The core idea of DevOps is how to release software changes into production frequently but also with good quality. Making each deployment unit small is the trick here. Large PRs not only make good code review impossible but also costs in code quality and release cycle, so making a task/change small is a valid skill in DevOps. We try to promote this idea with the following “Resolution time vs. PR size” chart:

  • Bubble size: Change set size (line of code)
  • Resolution time: PR creation time to PR merge time
  • #n: PR number

These charts continuously create awareness to remind everyone the progresses of adopting good practices and goals we pursue. These are just some examples we made here. Think of your own which can visually show your intention to others. By the way, these are also useful to give a summary of progress during monthly meetings.

PR Comment Notification

Each commit submitted to PR triggers a webhook to post a github comment as below. This is to remind the PR creator to add tests and fix new vulnerabilities found right inside this PR, because this is more efficient than making these up after two weeks later when changes are released to production. To make the quality index better, reviewers should also help to find out why the reviewee is having a problem.

  • Last n Avg.: Shows the trend of each metric
  • xxx_violations: The number of bug, vulnerability and code smell found
  • line_coverage: The percentage of LoC which are executed by unit tests

Summary & Future plans

How to write clean code and how to identify code smells and remove them provide a great context for code review discussion, and when team really spend time addressing these common issues, the culture is fostered along the way.

From the other side, metrics that do not get tracked are not useful; showing data trends over time is important, which gives context to allowing us to make corresponding actions. Looking at the trend lines shown in the charts above, things are moving with progress. Also we are going to consider adding more dashboards for the following:

  • Quality: bug open / close count with severities, defect density
  • Velocity: deployment frequency, lead time to production, change failure rate and MTTR
